ES Shell and Tube Extended Surface Coolers

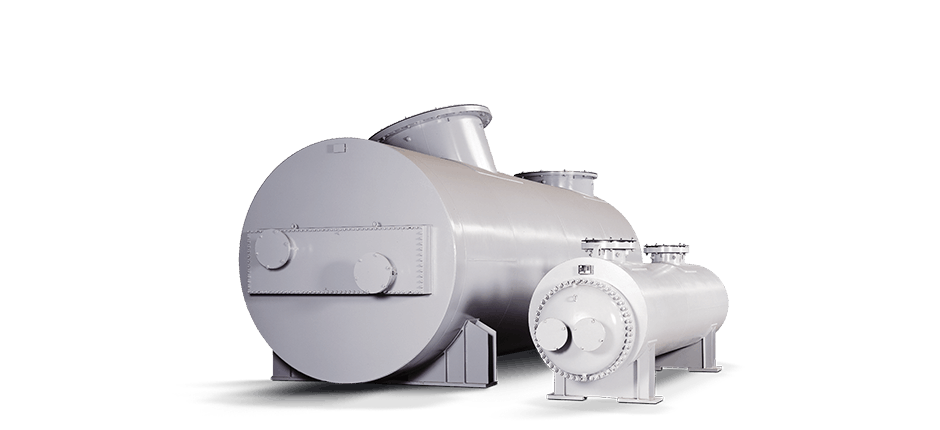

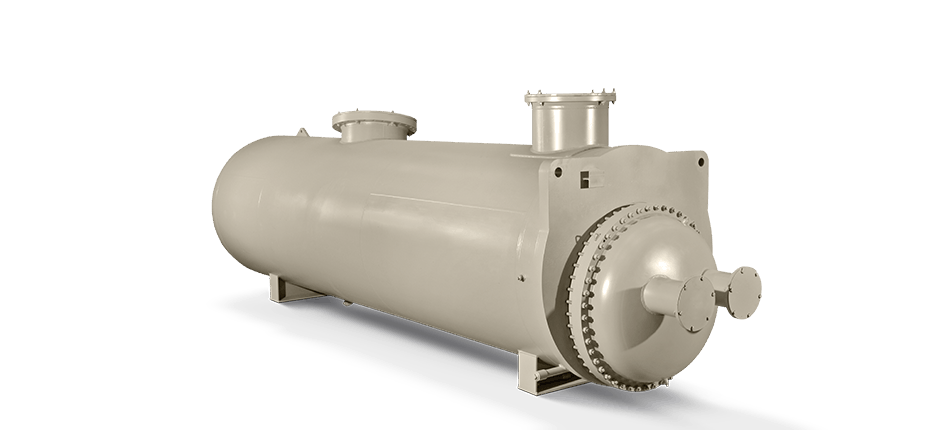

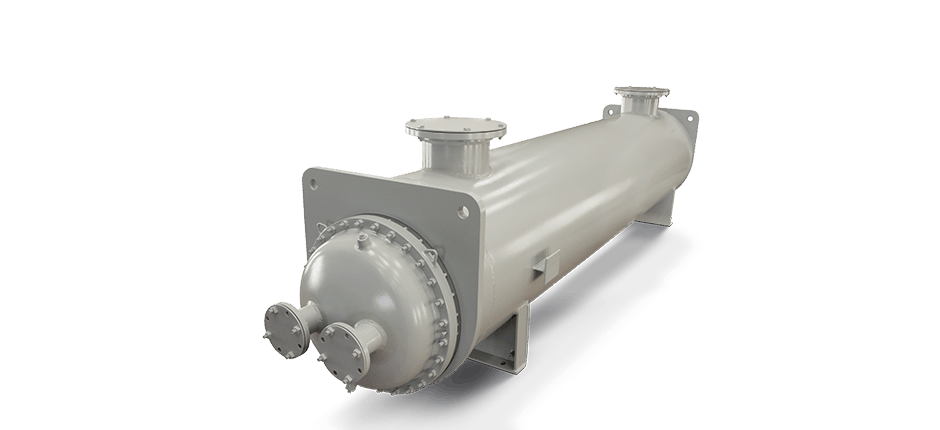

Basco™® Type ES Extended Surface Shell and Tube Fin Heat Exchangers
Our Type ES extended surface shell and tube fin heat exchanger is the industry leader for intercooler and aftercooler performance. Its unique patented compact plate fin design provides superior cooling of large air volumes at low pressure drops which means less energy consumption.
Specifications
Sizes: 20" to 120" diameter; 3' to 35' length
Shells: Carbon Steel or 304 Stainless Steel
Tubes: 3/8" or 5/8" diameter; Carbon Steel, 304 SS, Admiralty, 90/10 CuNi, 70/30 CuNi, or per customer specification
Fins: Aluminum, Coated Aluminum, or Copper; 8 to 20 fins per inch
Flow: 2 or 4 pass designs (or any even number of passes)
Codes & Certifications
Basco™ heat exchangers are designed and manufactured to comply with a wide variety of international codes and standards, including:
- EU Pressure Equipment Directive (PED)
- Chinese Safety Quality License
- Australian Pressure Vessel Code AS1210
- Singapore Pressure Vessel Code
- DOSH Malaysian Pressure Vessel Code
- Canadian Registration Number (CRN)
- Indian Boiler Regulations (IBR)
- Polish UDT Code
- API 614, 660, 618
Performance Notes
- Compact package delivers maximum heat transfer in minimum space
- Tubes are continuously supported over the entire length by plate fins, providing a vibration-free design
- Continuous silicone rubber seals prevent any mixing of inlet and outlet gas
- Integrated moisture separation removes the need for an external device
- Tubes are easily accessed for inspection and cleaning
- Type HF also available with high fin tubes, more diameter/material options, and higher shell-side pressures
