U-Tube

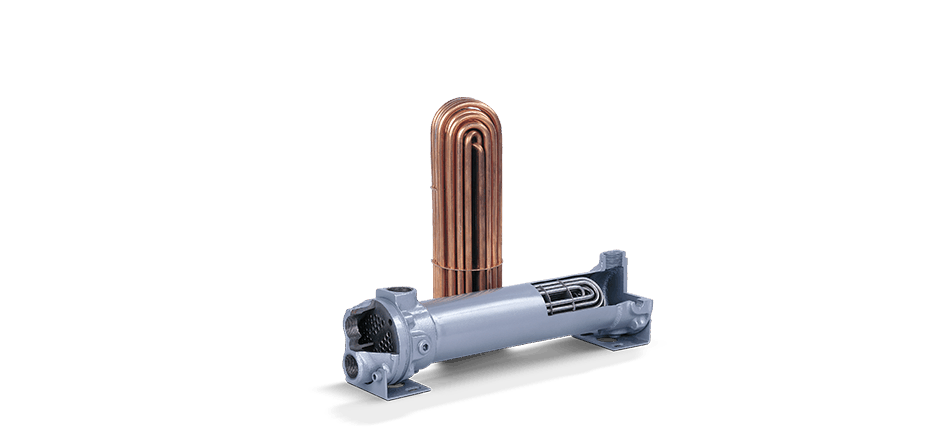

Basco™® U-Tube Shell & Tube Heat Exchangers

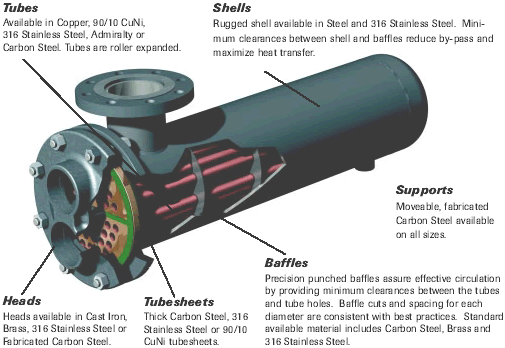

Basco™ manufactures several variations of U-Tube heat exchangers. Both the Type 500 and Hub-Design are available in U-Tube configurations. The Model BWS and BW U-Tube heat exchangers offer highly standardized construction at a very attractive price. The BWS is designed for water-to-steam, while the BW is built for water-to-water service. Units are also available as immersion tank heat exchangers.
Constructed in accordance with ASME Code Section VIII Division 1, these heavy duty U-Tube heat exchangers have built-in protection against damage caused by thermal expansion and contraction forces. As one end of the bundle is free to float, the unit is safe under extreme thermal cycling - making them ideal for use with steam as the heating medium.
Specifications
Sizes: 4" to 20" diameter; 28" to 130" length
Shells: Carbon Steel or 304 Stainless Steel
Configuration: U-Tube with free-floating bundle end for thermal cycling protection
Construction: ASME Code, Section VIII, Division 1
Codes & Certifications
Basco™ heat exchangers are designed and manufactured to comply with a wide variety of international codes and standards, including:
- EU Pressure Equipment Directive (PED)
- Chinese Safety Quality License
- Australian Pressure Vessel Code AS1210
- Singapore Pressure Vessel Code
- DOSH Malaysian Pressure Vessel Code
- Canadian Registration Number (CRN)
- Indian Boiler Regulations (IBR)
- Polish UDT Code
- API 614, 660, 618
Performance Notes
- Built-in protection against thermal expansion forces during heating and cooling cycles
- Free-floating bundle end allows safe operation under extreme thermal cycling
- Ideal for use with steam as the heating medium
- BWS model designed for water-to-steam service
- BW model designed for water-to-water service
- Also available as immersion tank heat exchangers
- Constructed per ASME Code, Section VIII, Division 1
