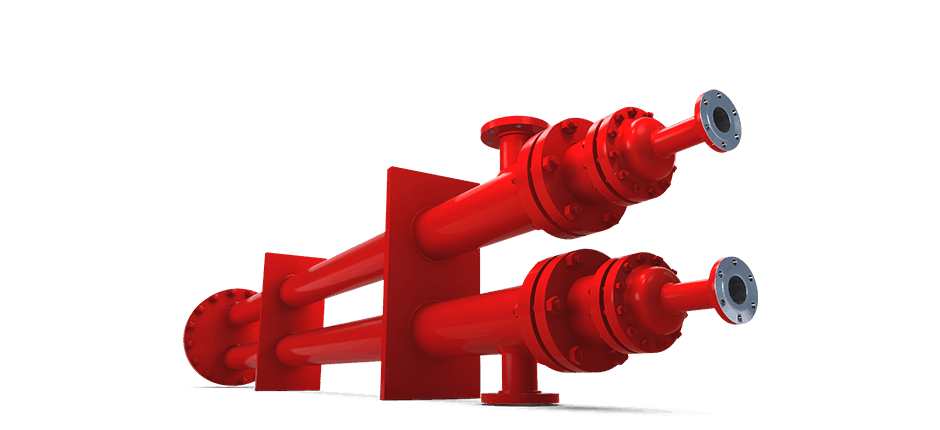

Basco™® Hairpin Heat Exchangers
A hairpin design is often more thermally efficient than a traditional shell and tube, which results in a lower up-front cost and lower overall weight. Our experienced designers and engineers can meet any custom cooling requirement.
Materials
Carbon steel, 300 series stainless steel, Duplex stainless steel, copper alloy, chrome-moly alloys, Hastelloy, Inconel, Monel, 254 SMO, alloy clad/weld overlay.
Bundle Types

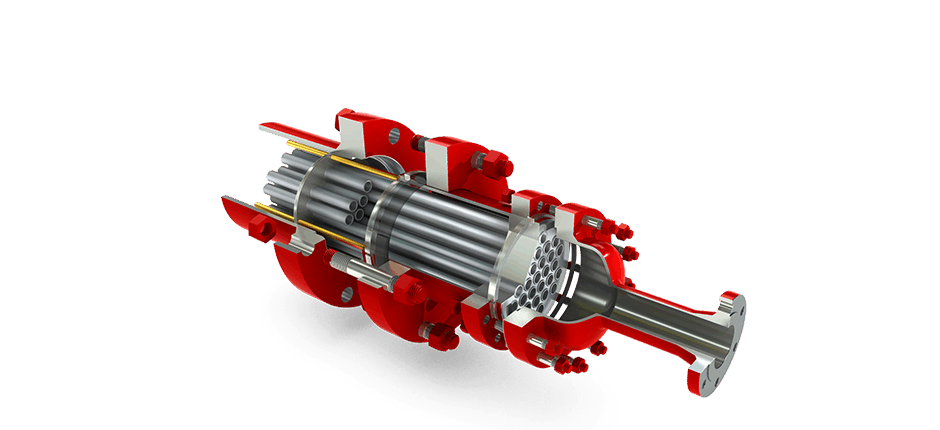

Separated Closure Double Pipe (Type SCDP)
- Employs the industry's most widely used separated head features
- Shell and tube side closures are separately bolted through - ideal for wide temperature or pressure differences
- In cyclic service, separately gasketed closures are more leak resistant than shell and tube designs
- Separate seal configuration makes the tube bundle easy to remove, clean and replace
- Well suited for large imbalance of flow on shell side; long fins achieve high thermal performance with minimal pressure drop

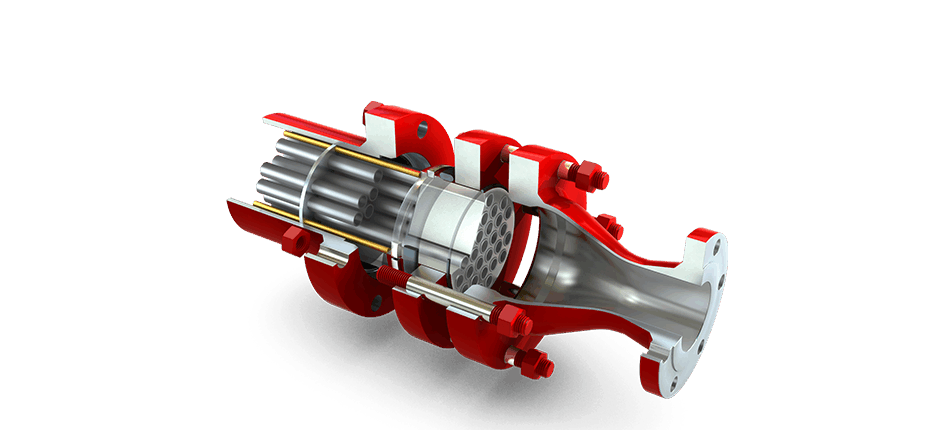

Common Closure Hairpin (Type CC)
- Single bolted closure design - ideal for low design temperature or pressure differences
- Center ring keeps the shell gasket seated during tube head removal for inspection or service
All-Welded Hairpin (Type AW)
- More cost effective when a removable bundle is not required; fixed tubesheet design
Jacketed Pipe (Type JP)
- Most economical solution for any heat transfer application; fixed tubesheet design
Codes & Certifications
Basco™ heat exchangers are designed and manufactured to comply with a wide variety of international codes and standards, including:
- EU Pressure Equipment Directive (PED)
- Chinese Safety Quality License
- Australian Pressure Vessel Code AS1210
- Singapore Pressure Vessel Code
- DOSH Malaysian Pressure Vessel Code
- Canadian Registration Number (CRN)
- Indian Boiler Regulations (IBR)
- Polish UDT Code
- API 614, 660, 618
Performance Notes
- Ideal for applications that require high thermal performance and a compact footprint
- True countercurrent flow enables close temperature approach and temperature cross
- Removable bundles available in separated or common closure options for cleaning
- Non-removable bundles offer cost-effective fixed tubesheet option
- Wide temperature differentials are handled without an expansion joint
- Long radius U-bend for ease of maintenance
- All connections at one end
- Sizes up to 60 in. (150 cm) diameter and 480 in. (1200 cm) length
- Designed and fabricated per ASME, TEMA, CRN, PED, CML
